PROJECT UPDATE: Successful transport of 30 complete GE2.82MW wind turbines / / OK

Caroline Ko
Case Studies

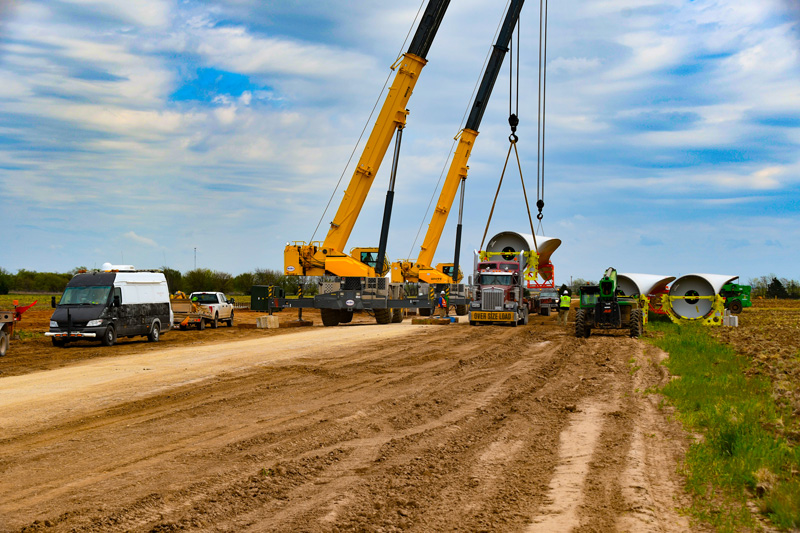

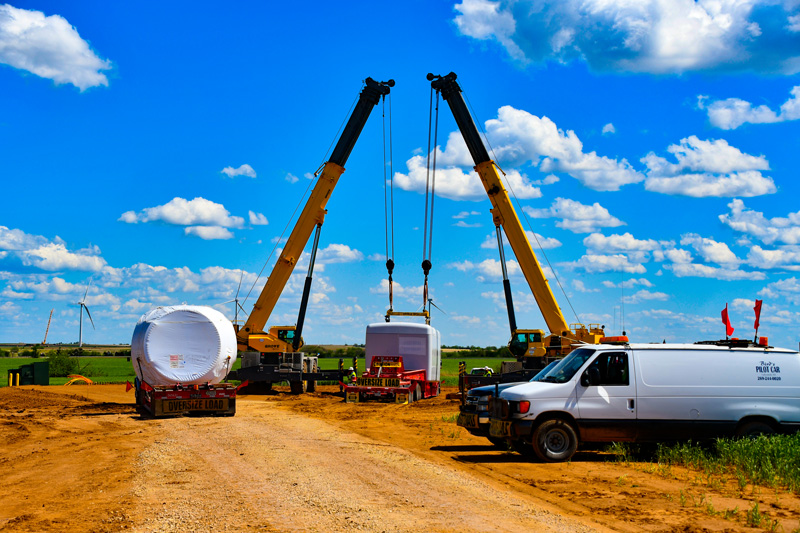

Logisticus recently wrapped a short-term delivery project for our customer in Oklahoma. The scope involved the transport of wind components from a nearby lay-down location to their final destination (a wind project site).

Highlights ⇢

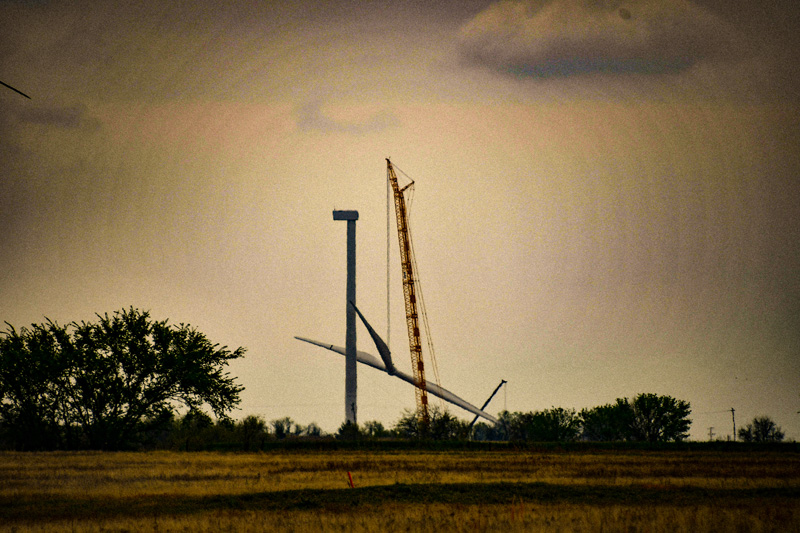

  • We moved 30 complete GE2.82MW turbines. (Watch a video of installation of one of these turbines here.)
  • Our team deployed a complete turbine set of tractors/trailers equipped with our GPS – a highlight of our proprietary system, Logisticus Technology Solutions – for tracking.

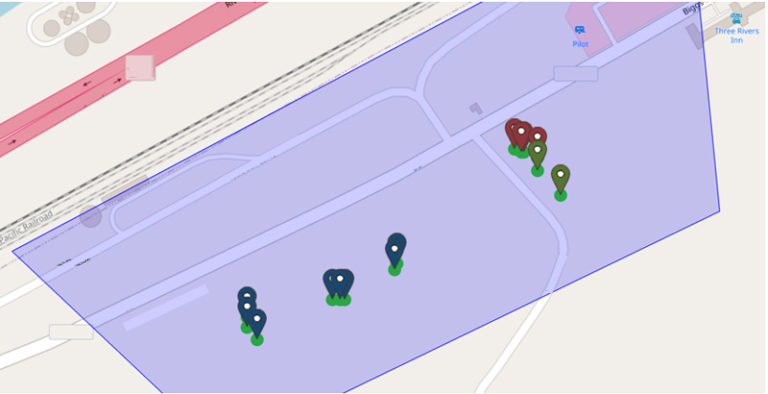

An example screen grab of the proprietary Logisticus Technology Solutions (LTS) GPS component tracking we utilize to communicate in real-time to our transport customers.



  • Custom geofences were added providing an alert upon 1. exit at origin and 2. entry at project site – giving further visibility to the site team.

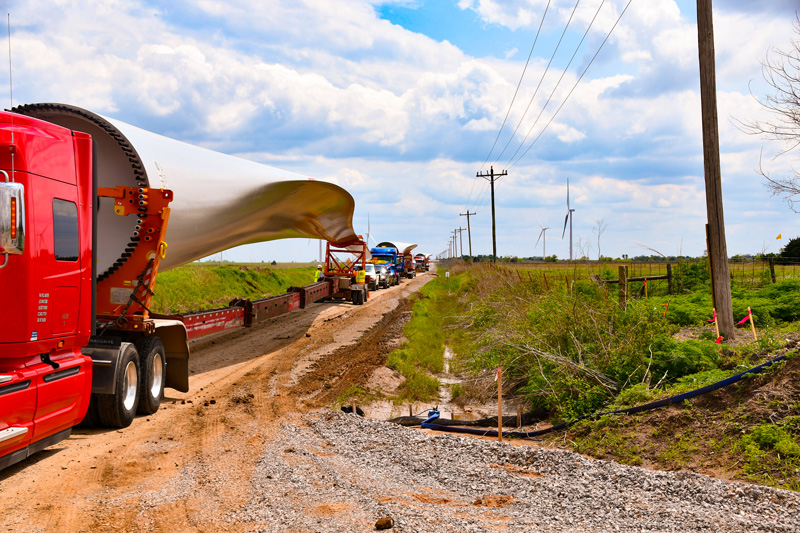

  • Our team and the site crews persevered through challenging road conditions and worked weekends to offset wind + weather days to get all turbine components delivered as quickly as possible.

DO YOU NEED SIMILAR SERVICES?

Reach out to us if you need short or long-term support on your wind and/or solar projects – including warehousing, unload/load out + transport to project sites – all combined with custom in-house inventory management system with real time visibility.

Learn more about our warehousing initiatives and the accompanying, unique capabilities of Logisticus Technology System (LTS).
